Clean air

Belt-Driven Oil-Free Compressor

Name: Belt-Driven Oil-Free Compressor
Brand: Jiebao
SKU: JIEBAO-79
Availability: InStock

Belt-Driven Oil-Free Compressor. Oil-free compressors, belt-driven oil-free units, and pump heads for cleaner air and simpler service.

Specifications

Product details

Filter by power

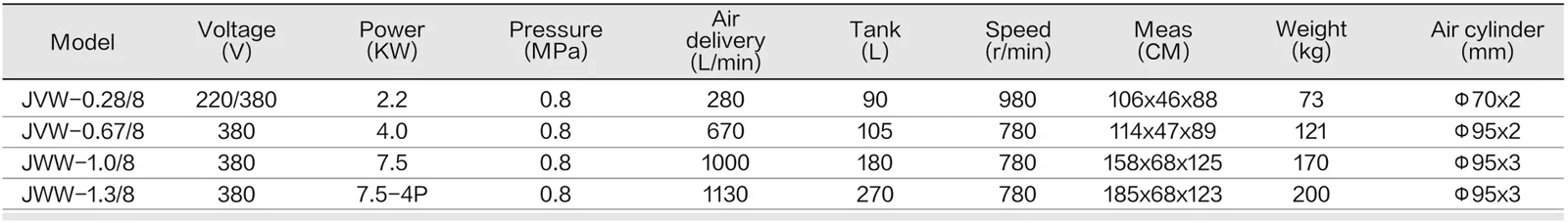

Model	Voltage (V)	Power	Pressure	Air delivery	Flow / pressure options	Tank (L)	Speed	Dimensions (cm)	Weight	Cylinder
JVW-0.28/8	220/380	2.2 kW	0.8	280	0.28/8	90	980	106x46x88	73	Φ70x2
JVW-0.67/8	380	4.0 kW	0.8	670	0.67/8	105	780	114x47x89	121	Φ95x2
JWW-1.0/8	380	7.5 kW	0.8	1000	1.0/8	180	780	158x68x125	170	Φ95x3
JWW-1.3/8	380	7.5-4P kW	0.8	1130	1.3/8; 7.5-4	270	780	185x68x123	200	Φ95x3

Selection notes

Clean auxiliary air where oil carryover can affect products, instruments, maintenance rooms, small labs, dental use, or light packaging equipment.

Large central plant air or regulated Class 0 projects unless certification, duty cycle, and treatment requirements are confirmed.

Working pressure, delivery, tank volume, duty cycle, noise requirement, voltage, installation space, and moisture control.

Tank, dryer or moisture separator, fine filtration, automatic drain, and service filter kit.

Range overview
