Laser Cutting Screw Compressor Package
Laser Cutting Screw Compressor Package. PM VFD, two-stage, laser-cutting, explosion-proof, and portable screw units for steady plant air.
- Family
- Screw air compressors
- Category
- Screw air compressors
- Models
- 2
Specifications
Product details
Filter by power

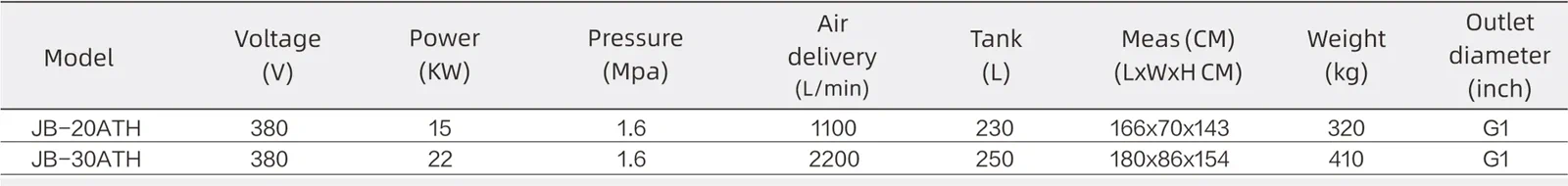

| Model | Voltage (V) | Power | Pressure | Air delivery | Tank (L) | Dimensions (cm) | Weight | Outlet |
|---|---|---|---|---|---|---|---|---|
| JB-20ATH | 380 | 15 kW | 1.6 | 1100 | 230 | 166x70x143 | 320 | G1 |
| JB-30ATH | 380 | 22 kW | 1.6 | 2200 | 250 | 180x86x154 | 410 | G1 |
Selection notes
How to specify this product
Best for
Fiber laser cutting lines that need clean, dry, stable compressed air at the cutting head.
Not ideal for
General low-pressure workshop air where the dryer, filter, receiver, and piping requirements are less demanding.
Select with
Cutting-head pressure, free air delivery, continuous demand, dryer capacity, filter grade, receiver volume, and pressure loss across the full line.
Match with
Refrigerated or adsorption dryer, precision filters, receiver, automatic drains, and suitable pipe diameter.
