Vacuum
Vacuum PumpModels: ZKW12500S-L - ZKW32500S-L
Vacuum Pump. Vacuum pumps for packaging, suction, conveying, and automation lines.
- Family
- Vacuum pumps
- Category
- Vacuum pumps
- Models
- 3
Specifications
Product details
Filter by power

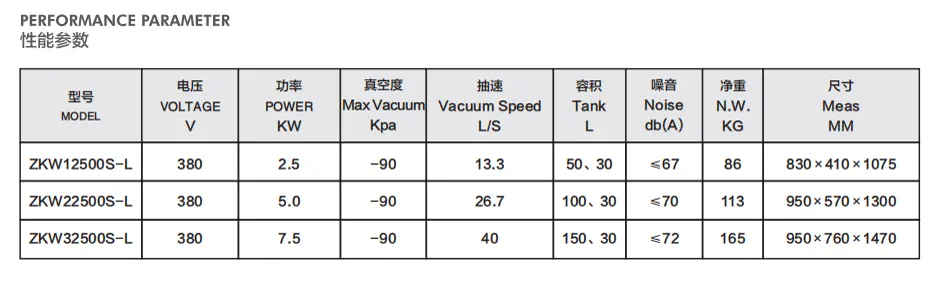

| Model | Voltage (V) | Power | Tank (L) | Dimensions (cm) | Weight | Noise | Max Vacuum (kPa) | Vacuum Speed (L/S) |
|---|---|---|---|---|---|---|---|---|
| ZKW12500S-L | 380 | 2.5 kW | 50, 30 | 830x410x1075 | 86 | ≤67 | -90 | 13.3 |
| ZKW22500S-L | 380 | 5.0 kW | 100, 30 | 950x570x1300 | 113 | ≤70 | -90 | 26.7 |
| ZKW32500S-L | 380 | 7.5 kW | 150, 30 | 950x760x1470 | 165 | ≤72 | -90 | 40 |
Selection notes
How to specify this product
Best for
Packaging, suction, conveying, automation lines, and general vacuum handling duties.
Not ideal for
Compressed-air supply; vacuum pumps must be selected by vacuum level and pumping speed, not compressor pressure.
Select with
max vacuum (kPa), vacuum speed (L/S), duty cycle, process gas, inlet size, voltage, cooling method, noise, and service access.
Match with
Inlet filters, check valves, separators, silencers, pipework, seals, oil, and maintenance kits.
