Vacuum
Vacuum PumpModels: ZKW400S - ZKW1100S
Vacuum Pump. Vacuum pumps for packaging, suction, conveying, and automation lines.
- Family
- Vacuum pumps
- Category
- Vacuum pumps
- Models
- 4
Specifications
Product details
Filter by power

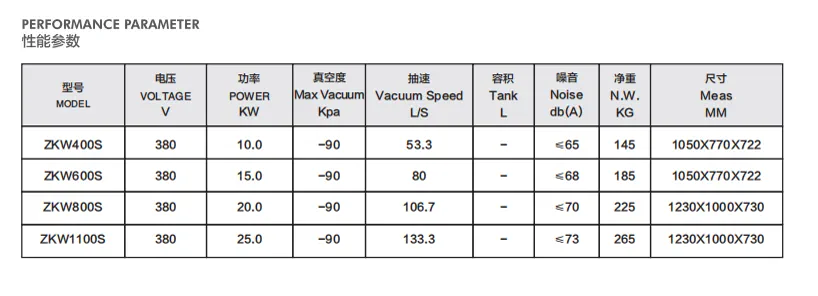

| Model | Voltage (V) | Power | Dimensions (cm) | Weight | Noise | Max Vacuum (kPa) | Vacuum Speed (L/S) |
|---|---|---|---|---|---|---|---|
| ZKW400S | 380 | 10.0 kW | 1050x770x722 | 145 | ≤65 | -90 | 53.3 |
| ZKW600S | 380 | 15.0 kW | 1050x770x722 | 185 | ≤68 | -90 | 80 |
| ZKW800S | 380 | 20.0 kW | 1230x1000x730 | 225 | ≤70 | -90 | 106.7 |
| ZKW1100S | 380 | 25.0 kW | 1230x1000x730 | 265 | ≤73 | -90 | 133.3 |
Selection notes
How to specify this product
Best for
Packaging, suction, conveying, automation lines, and general vacuum handling duties.
Not ideal for
Compressed-air supply; vacuum pumps must be selected by vacuum level and pumping speed, not compressor pressure.
Select with
max vacuum (kPa), vacuum speed (L/S), duty cycle, process gas, inlet size, voltage, cooling method, noise, and service access.
Match with
Inlet filters, check valves, separators, silencers, pipework, seals, oil, and maintenance kits.
Range overview
