Garage Service Piston CompressorModels: JV-0.3/10 - JW-1.2/14

Garage Service Piston Compressor. Garage service, J/F piston series, direct-driven machines, and explosion-proof piston compressors for intermittent air use.

Family: Piston and direct-driven compressors
Category: Piston air compressors
Models: 4

Request a quote Open spec sheet

Specifications

Product details

Filter by power

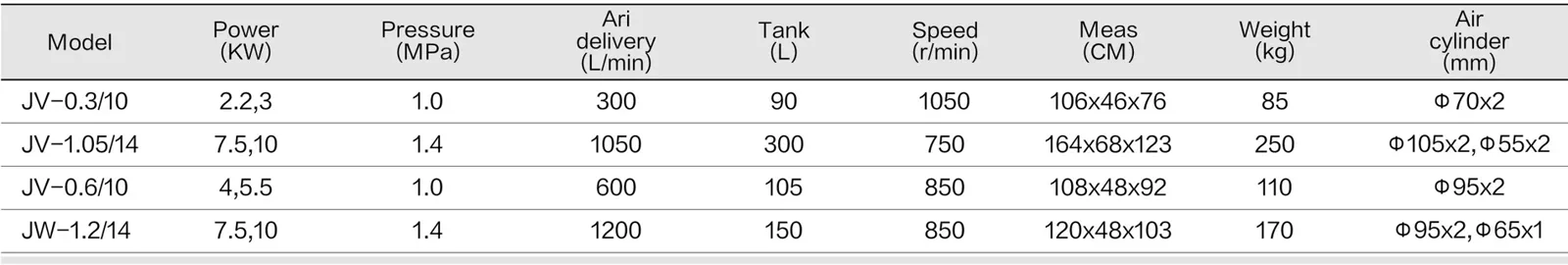

Model	Power	Pressure	Air delivery	Flow / pressure options	Tank (L)	Speed	Dimensions (cm)	Weight	Cylinder
JV-0.3/10	2.2,3 kW, HP	1.0	300	0.3/10	90	1050	106x46x76	85	Φ70x2
JV-1.05/14	7.5,10 kW, HP	1.4	1050	1.05/14	300	750	164x68x123	250	Φ105x2,Φ55x2
JV-0.6/10	4,5.5 kW, HP	1.0	600	0.6/10	105	850	108x48x92	110	Φ95x2
JW-1.2/14	7.5,10 kW, HP	1.4	1200	1.2/14	150	850	120x48x103	170	Φ95x2,Φ65x1

Garage Service Piston Compressor - Open spec sheet — Open spec sheet

Selection notes

How to specify this product

Best for

Auto service, repair shops, garage work, light industrial tools, and intermittent workshop air.

Not ideal for

All-shift continuous production where stable plant air, lower unloaded running cost, and longer duty cycles matter more.

Select with

Tool air demand, pressure, receiver size, noise, voltage, belt or direct-drive preference, duty cycle, and daily running hours.

Match with

Receiver, regulator, moisture separator, hose set, spare belt, intake filter, valves, and regular service kit.

Range overview

Piston and direct-driven compressors
