Italian-Style Belt-Driven Piston CompressorModels: JH-2550 - JH-2900

Italian-Style Belt-Driven Piston Compressor. Garage service, J/F piston series, direct-driven machines, and explosion-proof piston compressors for intermittent air use.

Family: Piston and direct-driven compressors
Category: Piston air compressors
Models: 5

Request a quote Open spec sheet

Italian-Style Belt-Driven Piston Compressor

Specifications

Product details

Filter by power

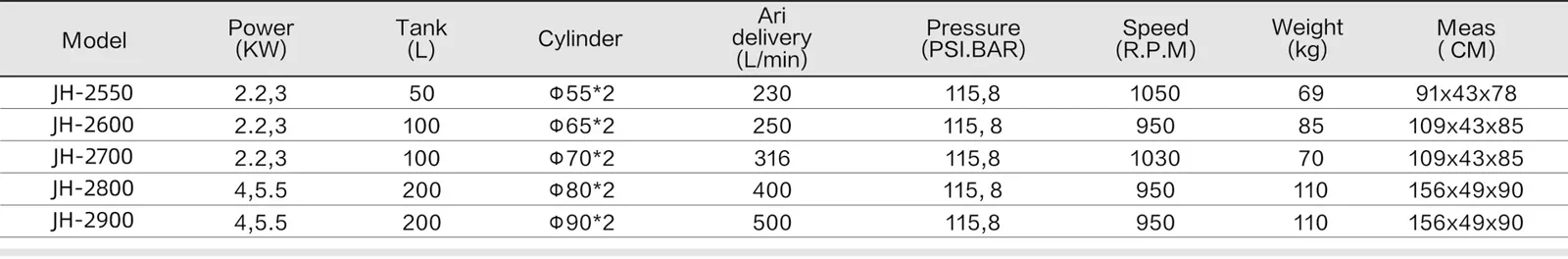

Model	Power	Pressure	Air delivery	Tank (L)	Speed	Dimensions (cm)	Weight	Cylinder
JH-2550	2.2,3 kW, HP	115,8	230	50	1050	91x43x78	69	Φ55*2
JH-2600	2.2,3 kW, HP	115,8	250	100	950	109x43x85	85	Φ65*2
JH-2700	2.2,3 kW, HP	115,8	316	100	1030	109x43x85	70	Φ70*2
JH-2800	4,5.5 kW, HP	115,8	400	200	950	156x49x90	110	Φ80*2
JH-2900	4,5.5 kW, HP	115,8	500	200	950	156x49x90	110	Φ90*2

Italian-Style Belt-Driven Piston Compressor - Open spec sheet — Open spec sheet

Selection notes

How to specify this product

Best for

Auto service, repair shops, garage work, light industrial tools, and intermittent workshop air.

Not ideal for

All-shift continuous production where stable plant air, lower unloaded running cost, and longer duty cycles matter more.

Select with

Tool air demand, pressure, receiver size, noise, voltage, belt or direct-drive preference, duty cycle, and daily running hours.

Match with

Receiver, regulator, moisture separator, hose set, spare belt, intake filter, valves, and regular service kit.

Range overview

Piston and direct-driven compressors
