Direct-Driven Piston JB-Series Air CompressorModels: JB2024 - JB2050B

Direct-Driven Piston JB-Series Air Compressor. Garage service, J/F piston series, direct-driven machines, and explosion-proof piston compressors for intermittent air use.

Family: Piston and direct-driven compressors
Category: Direct-driven air compressors
Models: 3

Request a quote Open spec sheet

Direct-Driven Piston JB-Series Air Compressor

Specifications

Product details

Filter by power

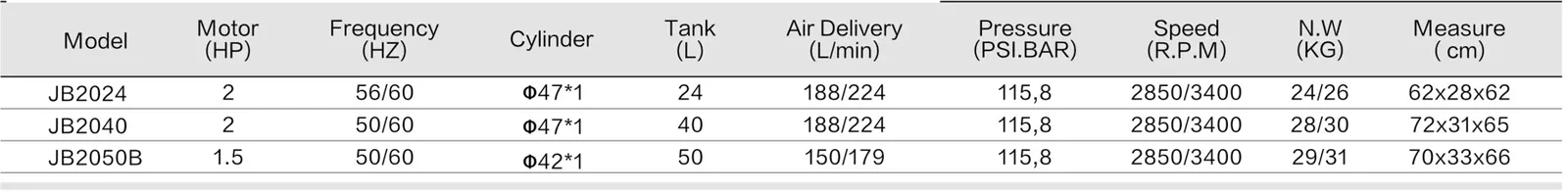

Model	Motor (HP)	Frequency (Hz)	Cylinder	Tank (L)	Air delivery (L/min)	Pressure (PSI.BAR)	Speed (R.P.M)	Weight (kg)	Dimensions (cm)
JB2024	2	56/60	Φ47*1	24	188/224	115,8	2850/3400	24/26	62x28x62
JB2040	2	50/60	Φ47*1	40	188/224	115,8	2850/3400	28/30	72x31x65
JB2050B	1.5	50/60	Φ42*1	50	150/179	115,8	2850/3400	29/31	70x33x66

Direct-Driven Piston JB-Series Air Compressor - Open spec sheet — Open spec sheet

Selection notes

How to specify this product

Best for

Auto service, repair shops, garage work, light industrial tools, and intermittent workshop air.

Not ideal for

All-shift continuous production where stable plant air, lower unloaded running cost, and longer duty cycles matter more.

Select with

Tool air demand, pressure, receiver size, noise, voltage, belt or direct-drive preference, duty cycle, and daily running hours.

Match with

Receiver, regulator, moisture separator, hose set, spare belt, intake filter, valves, and regular service kit.

Range overview

Piston and direct-driven compressors
