Workshop and piston

Piston F-Series Air CompressorModels: FW-1.2/30 - FS-2.6/8

Piston F-Series Air Compressor. Garage service, J/F piston series, direct-driven machines, and explosion-proof piston compressors for intermittent air use.

Family: Piston and direct-driven compressors
Category: Piston air compressors
Models: 3

Request a quote Open spec sheet

Specifications

Product details

Filter by power

Model	Power	Pressure	Air delivery	Flow / pressure options	Tank (L)	Speed	Dimensions (cm)	Weight	Cylinder
FW-1.2/30	15,20-4P kW, HP	435,30	1300,46	1.2/30	350	660	162X73X132	550	Φ120X2 Φ65X1
FS-2.0/8	15,20-4P kW, HP	115,8	2000,71.4	2.0/8	350	720	170X78X130	450	Φ90X4
FS-2.6/8	18.5,25-4P kW, HP	115,8	2600,92	2.6/8	500	720	196X78X150	620	Φ100X4

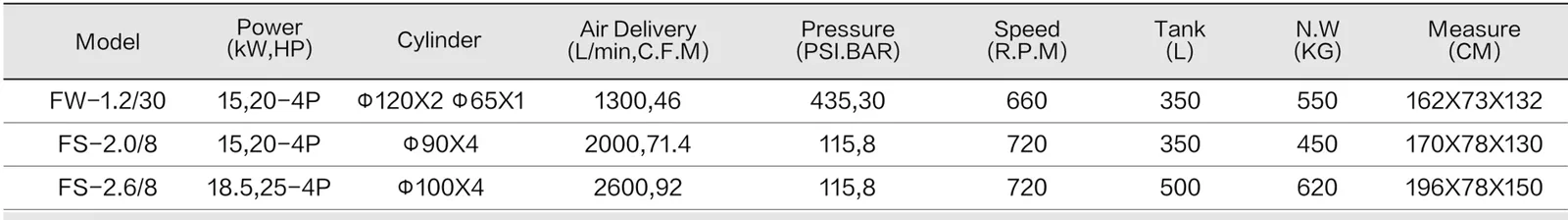

Piston F-Series Air Compressor - Open spec sheet — Open spec sheet

Selection notes

How to specify this product

Best for

Auto service, repair shops, garage work, light industrial tools, and intermittent workshop air.

Not ideal for

All-shift continuous production where stable plant air, lower unloaded running cost, and longer duty cycles matter more.

Select with

Tool air demand, pressure, receiver size, noise, voltage, belt or direct-drive preference, duty cycle, and daily running hours.

Match with

Receiver, regulator, moisture separator, hose set, spare belt, intake filter, valves, and regular service kit.

Range overview

Piston and direct-driven compressors
