Piston F-Series Air CompressorModels: FW-0.67/8 - FW-1.6/8

Piston F-Series Air Compressor. Garage service, J/F piston series, direct-driven machines, and explosion-proof piston compressors for intermittent air use.

Family: Piston and direct-driven compressors
Category: Piston air compressors
Models: 3

Request a quote Open spec sheet

Specifications

Product details

Filter by power

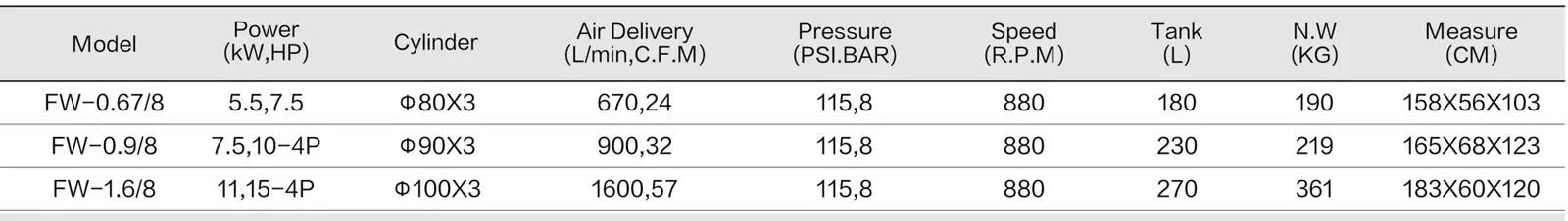

Model	Power	Pressure	Air delivery	Flow / pressure options	Tank (L)	Speed	Dimensions (cm)	Weight	Cylinder
FW-0.67/8	5.5,7.5 kW, HP	115,8	670,24	0.67/8	180	880	158X56X103	190	Φ80X3
FW-0.9/8	7.5,10-4P kW, HP	115,8	900,32	0.9/8	230	880	165X68X123	219	Φ90X3
FW-1.6/8	11,15-4P kW, HP	115,8	1600,57	1.6/8	270	880	183X60X120	361	Φ100X3

Piston F-Series Air Compressor - Open spec sheet — Open spec sheet

Selection notes

How to specify this product

Best for

Auto service, repair shops, garage work, light industrial tools, and intermittent workshop air.

Not ideal for

All-shift continuous production where stable plant air, lower unloaded running cost, and longer duty cycles matter more.

Select with

Tool air demand, pressure, receiver size, noise, voltage, belt or direct-drive preference, duty cycle, and daily running hours.

Match with

Receiver, regulator, moisture separator, hose set, spare belt, intake filter, valves, and regular service kit.

Range overview

Piston and direct-driven compressors
