Piston F-Series Air CompressorModels: FV-0.17/8 - FV-0.6/8

Piston F-Series Air Compressor. Garage service, J/F piston series, direct-driven machines, and explosion-proof piston compressors for intermittent air use.

Family: Piston and direct-driven compressors
Category: Piston air compressors
Models: 4

Request a quote Open spec sheet

Specifications

Product details

Filter by power

Model	Power	Pressure	Air delivery	Flow / pressure options	Tank (L)	Speed	Dimensions (cm)	Weight	Cylinder
FV-0.17/8	1.5,2.0 kW, HP	115,8	170,6	0.17/8	70	1030	94X46X82	80	Φ51X2
FV-0.25/8	2.2,3.0 kW, HP	115,8	250,8.9	0.25/8	100	1030	124X48X89	105	Φ65X2
FW-0.36/8	3.0,4.0 kW, HP	115,8	360,12.8	0.36/8	115	1080	125.6X49X97	140	Φ65X3
FV-0.6/8	4,5.5 kW, HP	115,8	600,21.4	0.6/8	150	920	150X49X98	180	Φ90X2

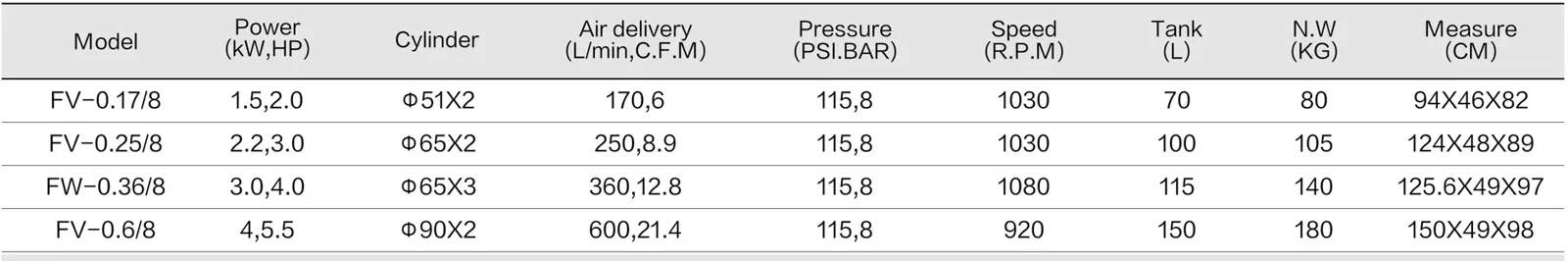

Piston F-Series Air Compressor - Open spec sheet — Open spec sheet

Selection notes

How to specify this product

Best for

Auto service, repair shops, garage work, light industrial tools, and intermittent workshop air.

Not ideal for

All-shift continuous production where stable plant air, lower unloaded running cost, and longer duty cycles matter more.

Select with

Tool air demand, pressure, receiver size, noise, voltage, belt or direct-drive preference, duty cycle, and daily running hours.

Match with

Receiver, regulator, moisture separator, hose set, spare belt, intake filter, valves, and regular service kit.

Range overview

Piston and direct-driven compressors
