Garage Service Piston CompressorModels: JV-0.9/14(W/O) - JV-1.2/14(W/O)

Garage Service Piston Compressor. Garage service, J/F piston series, direct-driven machines, and explosion-proof piston compressors for intermittent air use.

Family: Piston and direct-driven compressors
Category: Piston air compressors
Models: 3

Request a quote Open spec sheet

Specifications

Product details

Filter by power

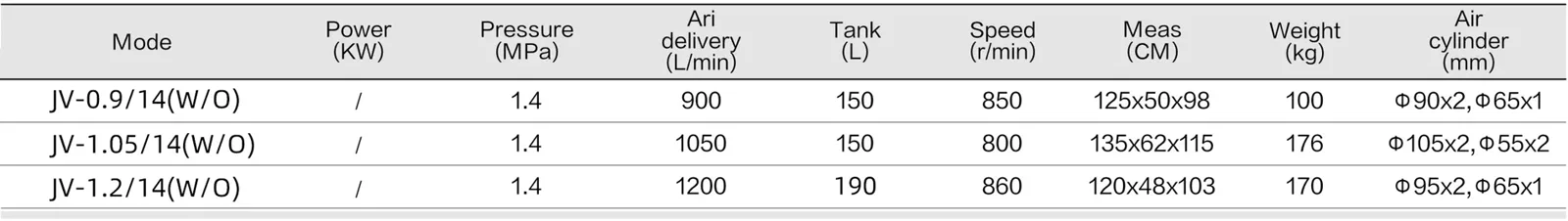

Model	Power (kW)	Pressure (MPa)	Air delivery (L/min)	Tank (L)	Speed (r/min)	Dimensions (cm)	Weight (kg)	Cylinder (mm)
JV-0.9/14(W/O)	/	1.4	900	150	850	125x50x98	100	Φ90x2,Φ65x1
JV-1.05/14(W/O)	/	1.4	1050	150	800	135x62x115	176	Φ105x2,Φ55x2
JV-1.2/14(W/O)	/	1.4	1200	190	860	120x48x103	170	Φ95x2,Φ65x1

Garage Service Piston Compressor - Open spec sheet — Open spec sheet

Selection notes

How to specify this product

Best for

Auto service, repair shops, garage work, light industrial tools, and intermittent workshop air.

Not ideal for

All-shift continuous production where stable plant air, lower unloaded running cost, and longer duty cycles matter more.

Select with

Tool air demand, pressure, receiver size, noise, voltage, belt or direct-drive preference, duty cycle, and daily running hours.

Match with

Receiver, regulator, moisture separator, hose set, spare belt, intake filter, valves, and regular service kit.
